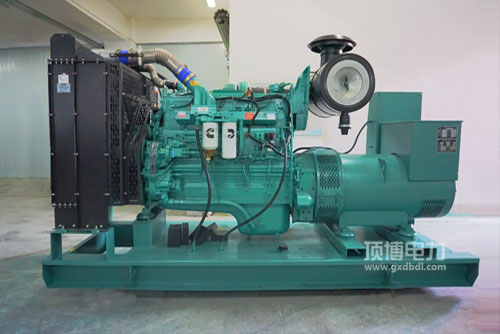

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用热车机然油国家性价比高好: 先进的的然油调节整体化，代表性的STC、ESTC 分级管理调节整体化，特殊化设计的发动机活塞上方熔化室，高压电喷出然油，更加有效充分的雾化吸入，熔化更加有效充分的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用汽车发行为瞬态效果非常好: 非凡的汽车发行为整体结构开发，协调一致康明斯奇特的EFC设计，把握的精密度大，积极响应事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用打火机升工率高: 产品装修设计紧身.形壮搭建适宜，作业顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50符合国内 非的道路第三个时段及中美洲Tier2. Tier 3尾气排放标准法律规范规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件必得性好， 启驱动力电脑运行及系统维护皮肤保养快捷，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率领域 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量水平 Dry Weight   940kg

224-310KW康明斯来发电用打火机的优点和缺点：体积太小， 减小变高， 格珊气热处理加热，更易开始，移动式车载影音主机电源的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机主要参数	适用瓦数(kW)Prime Power	应急工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
